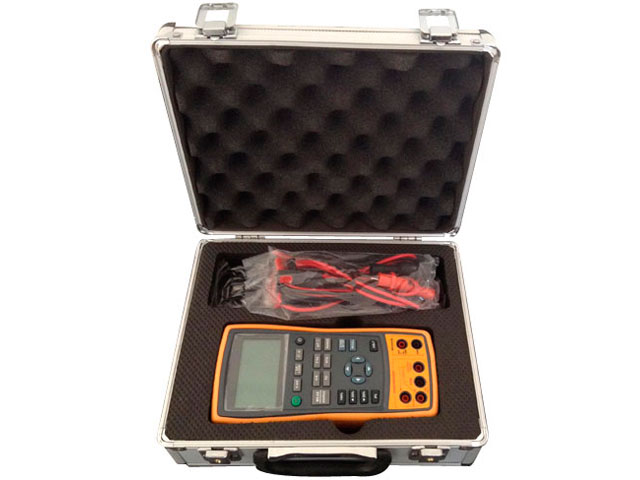

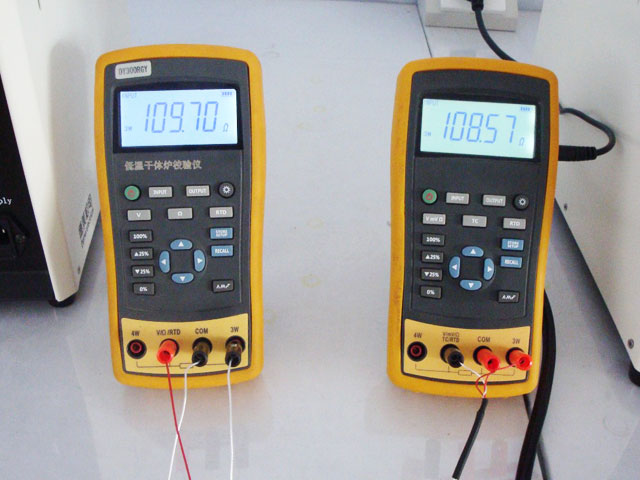

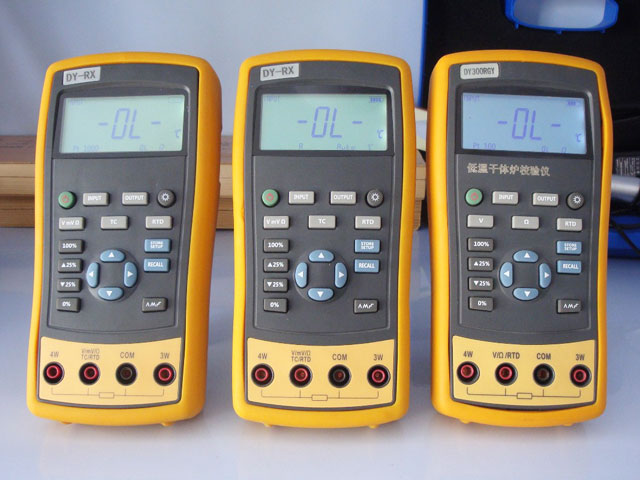

DY-RX Thermal instrument calibrator

DY-RX Thermal instrument calibrator

DY-RX Thermal instrument calibrator

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Functions]

1. Upper and lower display screens.The upper part of the screen is used to display the voltage, current (loop supply), millivolt, resistance, and on-off tests of the isolation module.The lower part of the screen displays the measured and output voltage, current, frequency, ohm, as well as thermal resistance (RTD), thermocouple (TC) in the form of temperature.

2. As isolated loop power supply is adopted, only one dy-rx can complete the calibration of multiple two-wire transmitters.

3. Provide cold end compensation for thermocouple (TC) measurement.

4. Customize the output range to facilitate the call of 0% ~ 100% values of different applications.

5, manual step, automatic step, 0 ~ 100% step and slope output.

List of output and measurement functions

FunctionMeasuringOutputMark
Direct voltage0~60V(Top Screen±30V)0~10VAcoustic measurement
Direct current0~24mA(Top Screen±24mA)0~24mAAcoustic measurement
Frequency1.000Hz~99.999kHz0.20Hz~20.000kHz
Resistance0~3200Ω10~3200ΩAcoustic measurement
Direct millivolt-10mV~120mV-10mV~120mVAcoustic measurement
Thermal resistancePt100、Pt1000、Cu50、Cu100Pt100、Pt1000、Cu50、Cu100
ThermocoupleE、J、K、T、B、R、S、NE、J、K、T、B、R、S、N
OthersIsolated loop power supply, step output, slope output, step output, custom range

DY-RX Thermal instrument calibrator

DY-RX Thermal instrument calibrator

DY-RX Thermal instrument calibrator

DY-RX Thermal instrument calibrator

DY-RX Thermal instrument calibrator 2020-12-9 This article was read 7598 Times
