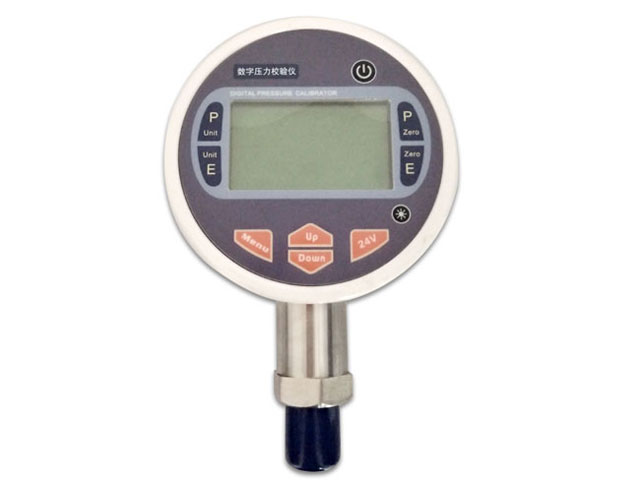

DY-601 Intelligent Pressure Calibrator

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

DY-601 intelligent pressure calibrator is a single range, with full range pressure measurement, high accuracy DC current, voltage measurement and 24VDC power output function of the instrument.

Can be used for calibration of ordinary (precision) pressure gauges, pressure transmitters, pressure regulating valves, pressure switches and real-time pressure measurement.

Main parameters: Gauge pressure, differential pressure, 0.05%FS, 0.02%FS and other specifications can be selected

Pressure range :(-0.095-2.5) MPa, (0-60) MPa

Main applications: calibration of intelligent pressure transmitter, ordinary pressure transmitter, ordinary pressure gauge, precision pressure gauge, pressure switch, etc.

Main Applications: Calibration Intelligent Pressure (Differential Pressure) Transmitter;

Verify the ordinary pressure (differential pressure) transmitter;

Check the pressure switch;

Verify precision pressure gauge, general pressure gauge.

[Product Features]

1. High accuracy and reliability

2. Built-in pressure module, and can be connected to the intelligent digital pressure module

3. Two-point calibration, convenient for user operation

4. Data backup, strong data correction function

5. MmH2O, mmHg, InH2O, Pa, KPa, Mpa, PSI, bar, mbar multiple pressure unit switch

[Technical indicators]

Electrical measurement indicators

Power supply configuration

Power supply: internal battery or special adapter power supply

Battery working time: about 100 hours, 24V with the corresponding shortening

Battery charge time: about 3 hours

Other indicators

Overall dimensions: header Φ 39 mm, 114 mm * 180 mm

Weight: 0.6 kg

Pressure interface: M20×1.5

Communication interface: RS232

Ambient temperature: (-20~70)℃

Temperature compensation: (0~50)℃

Relative humidity: <95%

Atmospheric pressure: (86~106)kPa

Storage temperature: (-40~85)℃
